Quick Details

  • Condition: New
  • Type: Ore Mine Rig
  • Power Type: Diesel
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Kaishan
  • Model Number: KY125
  • Usage: Ore
  • Voltage: 7-14Bar
  • Power(W): 33kw
  • Dimension(L*W*H): 4400*2200*205(mm)
  • Weight: 4000kgs
  • Certification: ISO CE
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Drilling Depth: 25m
  • Drilling Diameter: 80-115mm
  • Rock Rigidity: F=6-20
  • Traveling Speed: 0-2.0km/h
  • Rotation Speed: 0-65r/min
  • Max Feed Force: 1700N.m
  • Feed stroke: 3000mm
  • Rotation Torque: 1400N.m
  • Engine model: YC2108
  • Gradeability: 30°

Packaging & Delivery

Packaging Details Export Packing
Delivery Time Shipped in 15 days after payment

Product Photos:

Open-pit Surface DTH Drilling Rig KY125

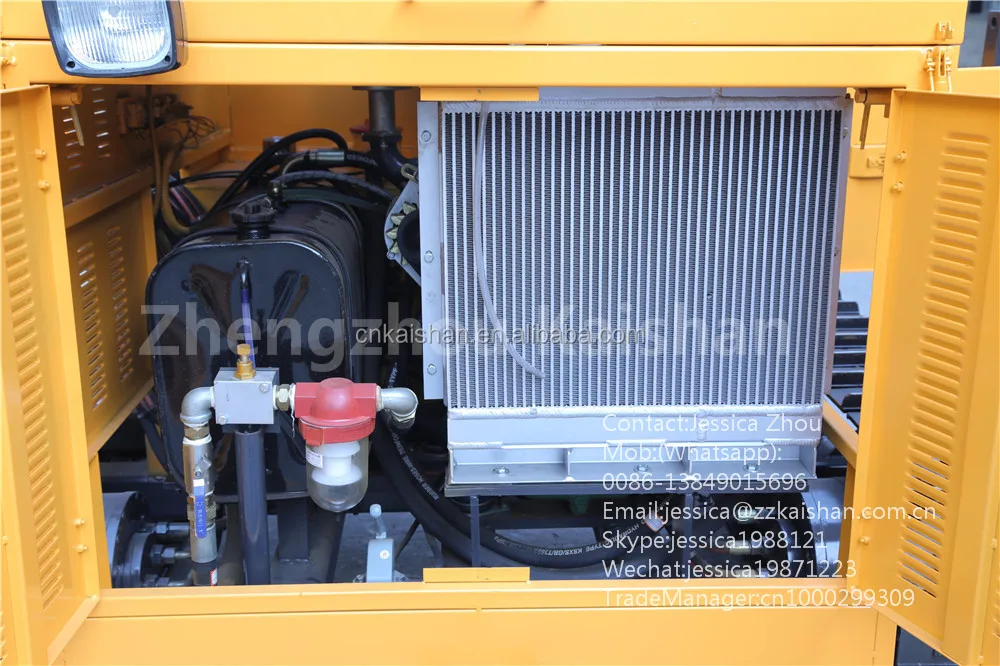

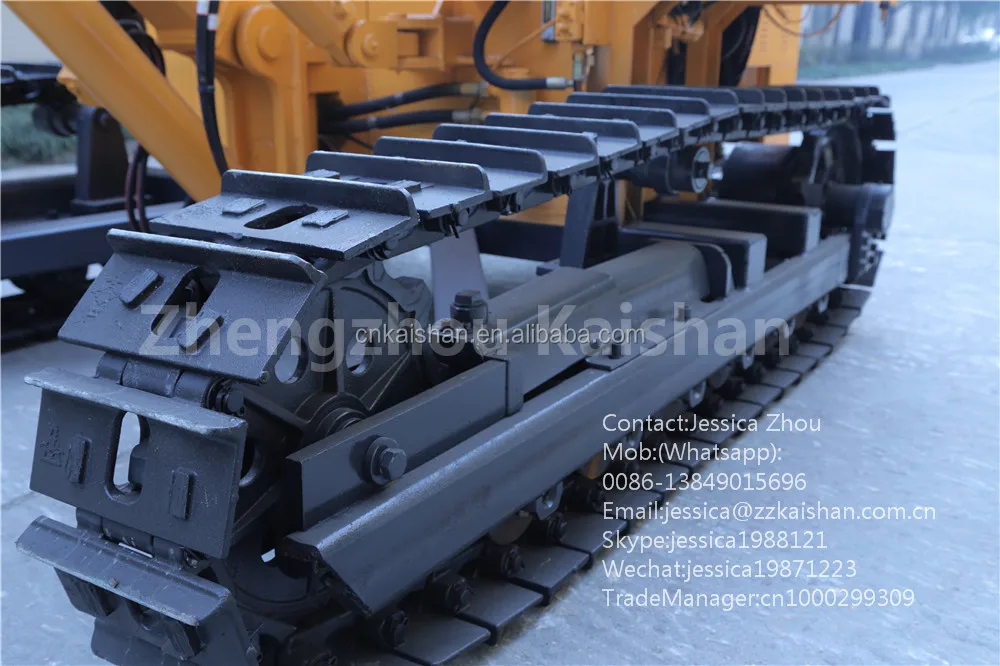

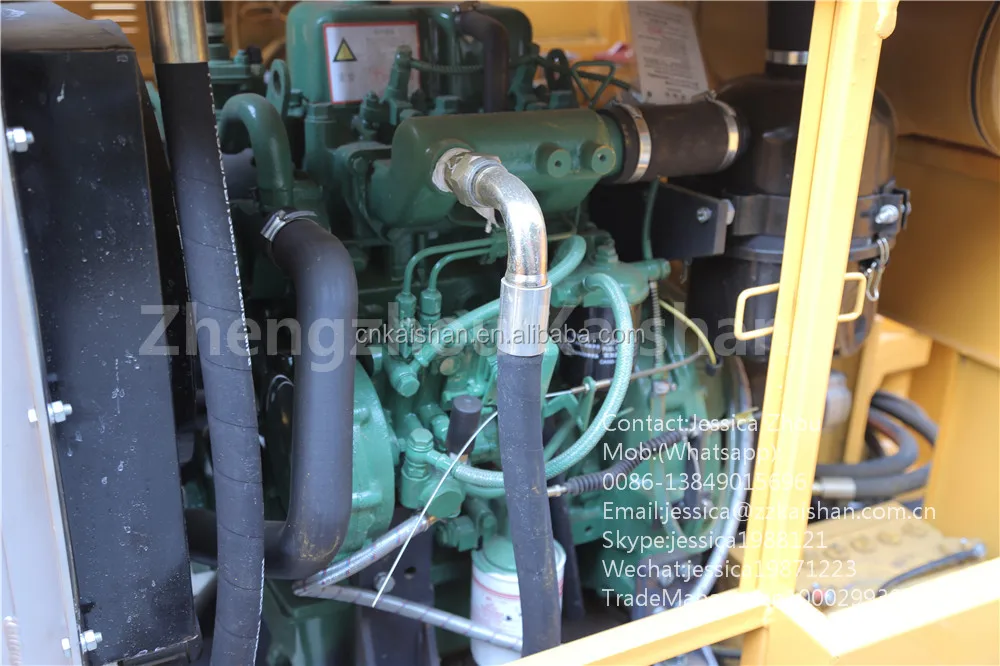

Product Parts of Open-pit Surface DTH Drilling Rig KY125


Products features of Open-pit Surface DTH Drilling Rig KY125:



 1. Powerful propulsion, rotating body
· High-power hydraulic motor driven rotary mechanism for drills provide powerful torque reserve, reducing chance of sticking.
· High-power hydraulic motor driven propulsion mechanism that can generate 20KN lifting force, regulating propulsion control valve on the regulator, you can get the best conditions required propulsion.
------------------------------------------------------------------------------------------------------------------------
2. Adjustable boom
· Adopt
activity boom, telescopic cylinders through the control can adjust the angle and horizontal drilling holes height, expanding the drilling range, improved product flexibility.
------------------------------------------------------------------------------------------------------------------------
3. Reliable hydraulic pump group
*Using two separate gear pump oil, reliable, adaptable, and easy maintenance.
· This machine adopt and soft features gear coupling, compact structure, smooth operation.
· Using special hydraulic components, improve system stability and reliability.
· Creation oil cooling device, eliminating the heating of the hydraulic oil system.
------------------------------------------------------------------------------------------------------------------------
4. Centralized control of the operating mechanism
· Drill is designed with advanced hydraulic system and air system fully functional, all actions are centralized control, easy operation.
· Operating hydraulic control valve, enabling lifting boom, swing and rigs pitch, swing angle, forward (backward) and other functions. Ensure multi-faceted diamond drill holes and drill the car stable.
· Operated Pneumatically operated valves, enabling the pump on and drilling vehicle propulsion (upgrade), swing, impact and other functions, to ensure high efficiency drilling drills.



2. Parameter of Open-pit Surface DTH Drilling Rig KY125

Model No

Open-pit Surface DTH Drilling Rig KY125

Rock hardness

F=6-20

Hole diameter

80-115mm

Economic Drill depth

25m

Pressure

0.7-1.4Mpa

Air consumption

≥15m³/min

Rotating speed

0-65r/min

Rotation torque

2000N.m

Lifting capacity

17000N

Propulsion Type

Hydro-Cylinder-Chain

Push Length

3000mm

Drill rod specification(mm)

64×3000mm/76×3000mm

Gradeability

30°

Ground clearance

290mm

Walking speed

2km/h

Drill arm rising angles

Down 25°  Up 50° total 75°

Drill arm swing angle

Left 45° Right 45° total 90°

Carriage swing angle

Left 45° Right 100° total 145°

Carriage pitch angle

Down 50°  Up 135° total 185°

Carriage Compensation

900mm

Diesel Engine

QC 498(39KW 2400r/min)

Overall Dimension(L*W*H)

4400×2200×2050(mm)

Total Weight

3300kg

Remark

Pneumatic-Hydraulic



Recommend below spare parts for Open-pit Surface DTH Drilling Rig KY125:



Drill bit Dia.

90mm

105mm

115mm

Drill pipe Dia*L

64x3000mm

64x3000mm

76x3000mm

Drill hammer

CW930

HD45S

HD45A



Below model diesel mobile screw air compressor for Open-pit Surface DTH Drilling Rig KY125 will be recommended:

 LGCY-15/13



 LGCY-13/13







 About KAISHAN Company

 1. Established in 1956 ,Specialized in this line more than 50 years.

 2. National Free-inspection Product.

 3. Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United Kingdom,United States,Japan,Germany etc.

 4. Exported to Asia/South America/Mongolia/ Japan/ South-Africa etc. Have global customers.
